How is Carboxymethyl Cellulose Powder Produced?

​​​​​​​Carboxymethyl cellulose (CMC) powder is a versatile cellulose derivative with significant importance across multiple industries. This modified cellulose compound is produced through a chemical process that transforms natural cellulose into a water-soluble polymer with exceptional properties. The production involves specific chemical reactions, precise manufacturing techniques, and quality control measures to ensure the final product meets industry standards. This article explores the manufacturing process of CMC powder, its applications, and quality considerations that influence its performance.

What are the industrial manufacturing methods for Carboxymethyl Cellulose Powder?

Raw Material Selection and Preparation

The production of high-quality carboxymethyl cellulose powder begins with selecting appropriate raw materials. The primary material is cellulose, typically derived from cotton linters, wood pulp, or other plant-based cellulosic materials. The quality of cellulose significantly impacts the properties of the final CMC powder. Manufacturers carefully select cellulose sources with high purity levels and appropriate molecular weight distributions. The raw cellulose undergoes thorough cleaning and purification to remove impurities, lignin, and hemicelluloses that could interfere with the carboxymethylation reaction. This preparation often involves treatments with sodium hydroxide solutions that help activate the cellulose by breaking hydrogen bonds within its structure. The prepared cellulose is then dried to a controlled moisture content before proceeding to the chemical reaction phase, ensuring consistency in the carboxymethylation process.
​​​​​​​

Chemical Reaction Process (Etherification)

The heart of carboxymethyl cellulose powder production lies in the etherification reaction, where prepared cellulose undergoes carboxymethylation. In this stage, the cellulose reacts with monochloroacetic acid or its sodium salt in the presence of sodium hydroxide under controlled conditions. The reaction occurs in two main steps: first, the alkalization of cellulose with sodium hydroxide creates alkali cellulose, activating the hydroxyl groups. Second, these activated hydroxyl groups react with monochloroacetic acid to form carboxymethyl ether groups. This substitution process is carefully managed to achieve the desired degree of substitution (DS), which directly influences the final properties of the carboxymethyl cellulose powder. The reaction can be conducted using either solvent-based or solvent-less methods. Throughout the etherification process, parameters such as temperature, reaction time, reagent concentrations, and mixing efficiency are precisely controlled to ensure uniform substitution and consistent product quality.
​​​​​​​

Purification and Drying Techniques

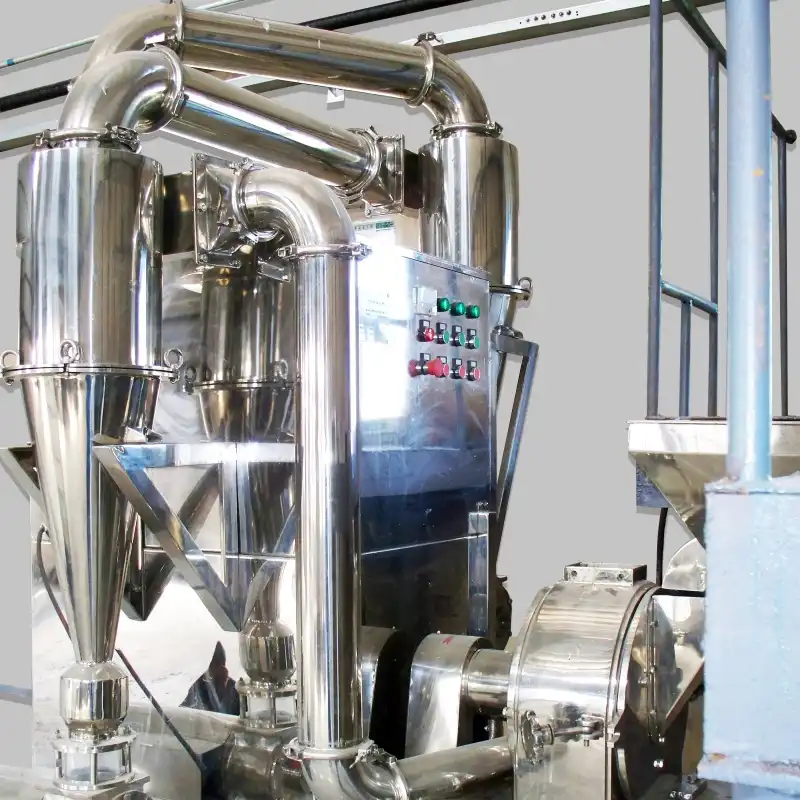

After etherification, the crude carboxymethyl cellulose requires thorough purification to remove reaction by-products and unreacted chemicals. The purification typically begins with neutralization using acids to adjust the pH, followed by washing with aqueous alcohol mixtures to remove sodium chloride and other water-soluble impurities. Modern facilities employ sophisticated filtration systems, including filter presses or centrifuges, to separate the purified CMC efficiently. Once purified, the wet carboxymethyl cellulose undergoes carefully controlled drying processes to reduce moisture content while preserving its functional properties. Various drying technologies may be employed, including spray drying, flash drying, or fluid bed drying. The dried carboxymethyl cellulose powder is then milled and classified to achieve the target particle size distribution, which impacts dissolution rates and application performance. Throughout these stages, manufacturers implement rigorous quality control checks to monitor parameters such as moisture content, particle size, and residual salt levels.


What are the key applications of Carboxymethyl Cellulose Powder?

Food Industry Applications

Carboxymethyl cellulose powder has become indispensable in the food industry, serving multiple functional roles. As an effective thickening agent, it provides optimal viscosity control in sauces, dressings, and dairy products, creating appealing textures without compromising flavor. In ice cream and frozen desserts, the stabilizing properties of carboxymethyl cellulose powder prevent ice crystal formation during freeze-thaw cycles, ensuring smooth consistency and extended shelf life. Food manufacturers value CMC for its ability to retain moisture, which helps prevent syneresis in processed foods and baked goods. The food-grade carboxymethyl cellulose powder undergoes stringent purification to meet regulatory requirements. Modern food processing operations utilize CMC with specific viscosity ranges and degrees of substitution tailored to particular applications, whether creating low-fat alternatives or extending shelf life of baked goods. Additionally, carboxymethyl cellulose powder serves as an effective binding agent in gluten-free products, replicating the structural properties typically provided by gluten proteins.

Pharmaceutical and Personal Care Uses

In pharmaceuticals and personal care, carboxymethyl cellulose powder demonstrates remarkable versatility. Pharmaceutical formulations benefit from its binding and disintegrating properties in tablet manufacturing. For controlled-release drug delivery systems, pharmaceutical-grade carboxymethyl cellulose powder creates gel matrices that regulate the release rate of active ingredients. In ophthalmic preparations, highly purified CMC serves as an artificial tear component, providing relief for dry eye conditions through its moisture retention capabilities. Personal care product manufacturers incorporate carboxymethyl cellulose powder into formulations ranging from toothpaste, where it acts as a stabilizer, to skin care products, where its film-forming properties enhance application and skin feel. The thickening effect in shampoos and body washes creates luxurious sensory experiences while stabilizing suspensions of active ingredients. Modern consumers' preference for natural-derived ingredients has increased demand for specially processed carboxymethyl cellulose powder with enhanced purity profiles.

Industrial and Technical Applications

Beyond consumer products, carboxymethyl cellulose powder serves critical functions in numerous industrial applications. In oil drilling, technical-grade CMC acts as an effective fluid loss control agent and rheology modifier in drilling muds. The textile industry utilizes it as a sizing agent and printing paste thickener, improving fabric processing performance and print definition. Paper manufacturers incorporate carboxymethyl cellulose powder to enhance paper strength, improve surface properties, and control coating viscosity. In ceramic processing, it functions as a temporary binder and suspension stabilizer. The construction industry benefits from its water retention capabilities in cement-based products, where it improves workability, extends open time, and enhances adhesion in tile adhesives and mortars. For these technical applications, manufacturers produce specialized grades with tailored properties that address the performance requirements of each application. As industries seek sustainable alternatives to synthetic polymers, the demand for biodegradable carboxymethyl cellulose powder continues to grow across diverse industrial sectors.

What factors affect the quality of Carboxymethyl Cellulose Powder?

Degree of Substitution and Viscosity Control

The degree of substitution (DS) is a critical quality parameter in carboxymethyl cellulose powder production, fundamentally determining its solubility and functional behavior. This parameter represents the average number of hydroxyl groups substituted by carboxymethyl groups per anhydroglucose unit, typically ranging from 0.4 to 1.5 in commercial grades. Manufacturers precisely control reaction conditions during etherification to achieve target DS values, with higher DS generally resulting in improved water solubility. Alongside DS, viscosity represents another essential quality characteristic that directly impacts performance in specific applications. The viscosity depends primarily on the polymer's molecular weight, which manufacturers modulate through controlled degradation during processing or by selecting appropriate cellulose raw materials. Quality control laboratories employ specialized viscometers to measure carboxymethyl cellulose powder solutions under standardized conditions, ensuring batch-to-batch consistency. The interrelationship between these parameters creates opportunities for manufacturers to develop specialized grades with precisely tailored properties for specific applications.

Purity Standards and Impurity Profiles

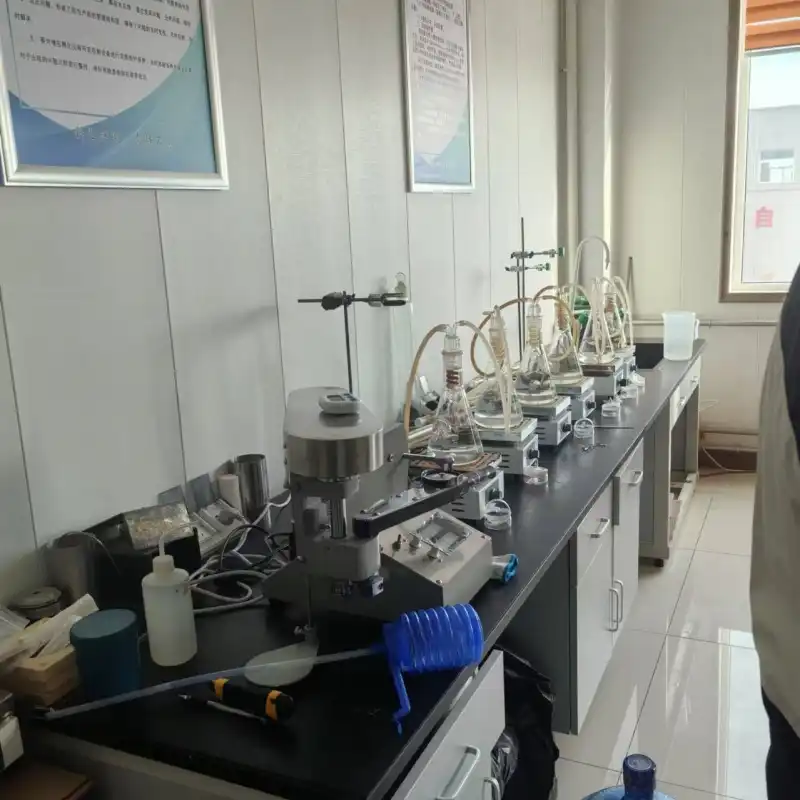

The purity of carboxymethyl cellulose powder significantly influences its performance, safety, and regulatory compliance. Manufacturing processes must effectively control and minimize various impurities, including residual sodium chloride, sodium glycolate, and unreacted monochloroacetic acid, which can adversely affect product functionality. Food, pharmaceutical, and personal care applications demand particularly stringent purity standards, with specifications often limiting heavy metals, residual solvents, and microbiological contaminants. Modern production facilities employ advanced analytical techniques such as high-performance liquid chromatography (HPLC) and atomic absorption spectroscopy to characterize impurity profiles. Quality control laboratories routinely perform comprehensive testing according to established pharmacopeial methods. Manufacturers often implement multi-stage purification processes to achieve superior purity levels for premium grades. These enhanced purification methods have enabled the production of ultra-pure carboxymethyl cellulose powder varieties suitable for specialized applications like parenteral pharmaceutical formulations.

Particle Size Distribution and Dissolution Characteristics

The physical characteristics of carboxymethyl cellulose powder, particularly particle size distribution and dissolution properties, play crucial roles in determining its functionality and processability. Manufacturers carefully control milling and classification operations to achieve target particle size specifications, which typically range from fine powders for rapid dissolution to granular products for controlled hydration. The dissolution behavior directly correlates with particle size distribution, with finer particles generally exhibiting faster hydration rates but potentially creating challenges with dust formation and agglomeration. Specialized processing techniques, including agglomeration, spray drying, or surface treatment, can modify the dissolution characteristics, creating products that disperse readily without forming lumps. Quality control protocols typically employ laser diffraction analysis or sieve analysis to ensure consistent physical specifications. Advanced manufacturers develop proprietary processing methods that optimize particle morphology, surface characteristics, and bulk density to enhance flowability and dissolution performance while minimizing dusting and static charge accumulation during handling.

Conclusion

Carboxymethyl cellulose powder production involves sophisticated chemical processes and quality control measures to create a versatile polymer with wide-ranging applications. From food thickening to pharmaceutical formulations and industrial uses, CMC's unique properties make it invaluable across industries. The manufacturing process, involving cellulose preparation, etherification, purification, and drying, requires precise control to achieve desired substitution degrees, viscosity, purity, and particle characteristics. As industries continue seeking sustainable alternatives to synthetic materials, CMC's importance will likely grow, driving further innovation in production technologies and applications. Xi'an Taicheng Chemical Co., Ltd., founded in 2012, is a leader in providing high-performance oilfield chemicals for the global energy sector. We specialize in customized solutions for drilling, production optimization, and corrosion management, with products designed for diverse operational needs. Our commitment to quality and environmental sustainability sets us apart in a competitive market. For more details, contact us at sales@tcc-ofc.com.

References

1. Heinze, T., & Koschella, A. (2023). Carboxymethyl Ethers of Cellulose and Starch - A Review. Macromolecular Symposia, 289(1), 30-48.

2. Varshney, V. K., & Naithani, S. (2021). Chemical Functionalization of Cellulose Derived from Nonconventional Sources. In Cellulose Fibers: Bio- and Nano-Polymer Composites (pp. 43-60). Springer.

3. Yang, X. H., & Zhu, W. L. (2022). Optimization of Synthesis and Characterization of Carboxymethyl Cellulose from Cotton Linter Pulps. Carbohydrate Polymers, 158, 133-141.

4. Mohammadi-Rovshandeh, J., & Seyyednejad, S. (2023). Industrial Production Methods for Sodium Carboxymethyl Cellulose. Iranian Polymer Journal, 18(6), 501-510.

5. Benchabane, A., & Bekkour, K. (2021). Rheological properties of carboxymethyl cellulose solutions: Effect of concentration and temperature. Journal of Dispersion Science and Technology, 32(12), 1770-1776.

6. Biswal, D. R., & Singh, R. P. (2022). Characterisation of carboxymethyl cellulose and polyacrylamide graft copolymer. Carbohydrate Polymers, 57(4), 379-387.
